Note: The 1002_0B is identical to the 1002_0, except that you have the option of whether you want to include the USB cable.

The PhidgetAnalog 4-Output Produces a voltage over -10V to +10V at a maximum of ±20mA. If this current is exceeded an error will be thrown to notify that the voltage may have dropped below the setpoint. The voltage is produced with 12 bit resolution (4.8mV).

The board is not isolated and all 4 channels share a common ground.

All the power is supplied by via USB.

* The maximum output frequency is dependent on the speed of your system.

Comes Packaged with

Hardware

  • Hardware mounting kit:
  • 4x M3 Bolts (2cm Length)
  • 4x Plastic spacers (5mm Length)
  • 4x M3 Nuts






Product Specifications


Board Properties
Controlled By USB (Mini-USB)
API Object Name VoltageOutput
USB Voltage Min 4.6 V DC
USB Voltage Max 5.5 V DC
Current Consumption Min 55 mA
Current Consumption Max 300 mA
Available External Current (per channel) 20 mA
Recommended Wire Size 16 - 26 AWG
USB Speed Full Speed
Operating Temperature Min 0 °C
Operating Temperature Max 70 °C
Voltage Outputs
Number of Voltage Outputs 4
Output Impedance (Channel Enabled) 500 mΩ
Output Impedance (Channel Disabled) 4 kΩ
Voltage Output Max ± 10 V DC
Output Voltage Resolution (12 bit) 4.8 mV DC
Capacitive Load Stability 4 nF
Frequency Max Variable*

* The maximum output frequency is dependent on the speed of your system.



Documents




Getting Started


Welcome to the 1002 user guide! In order to get started, make sure you have the following hardware on hand:


  • 1002 PhidgetAnalog 4-Output
  • USB cable and computer
  • something to use with the 1002 (multimeter, oscilloscope, device with voltage input, etc.)

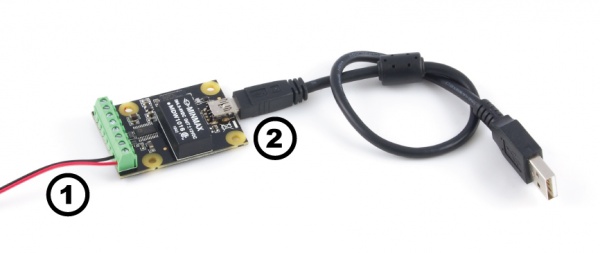

Next, you will need to connect the pieces:


1002 0 Connecting the Hardware.jpg


  1. Connect the output of the 1002 to your device. Note the polarity on the underside of the 1002.
  2. Connect the 1002 to your computer using the USB cable.



Now that you have everything together, let's start using the 1002!


Using the 1002


Phidget Control Panel


In order to demonstrate the functionality of the 1002, the Phidget Control Panel running on a Windows machine will be used.



The Phidget Control Panel is available for use on both macOS and Windows machines.


Windows


To open the Phidget Control Panel on Windows, find the Ph.jpg icon in the taskbar. If it is not there, open up the start menu and search for Phidget Control Panel


Windows PhidgetTaskbar.PNG


macOS


To open the Phidget Control Panel on macOS, open Finder and navigate to the Phidget Control Panel in the Applications list. Double click on the Ph.jpg icon to bring up the Phidget Control Panel.



For more information, take a look at the getting started guide for your operating system:




Linux users can follow the getting started with Linux guide and continue reading here for more information about the 1002.


First Look

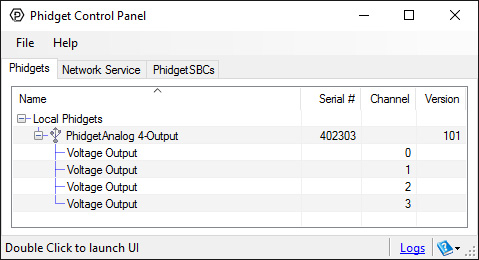

After plugging the 1002 into your computer and opening the Phidget Control Panel, you will see something like this:


1002 Panel.jpg



The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:


  • Serial number: allows you to differentiate between similar Phidgets.
  • Channel: allows you to differentiate between similar objects on a Phidget.
  • Version number: corresponds to the firmware version your Phidget is running. If your Phidget is listed in red, your firmware is out of date. Update the firmware by double-clicking the entry.



The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.


Voltage Output

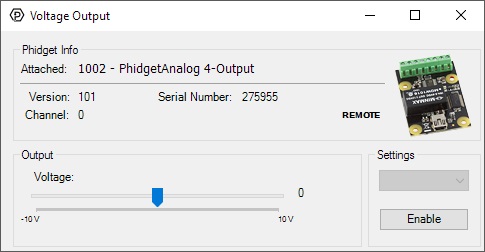

Double-click on the Voltage Output object in order to run the example:


1002 VoltageOutput Example.jpg



General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:


  • Set the output voltage by dragging the Voltage slider.
  • Enable/disable the output voltage by toggling the Enable button.


Finding The Addressing Information


Before you can access the device in your own code, and from our examples, you'll need to take note of the addressing parameters for your Phidget. These will indicate how the Phidget is physically connected to your application. For simplicity, these parameters can be found by clicking the button at the top of the Control Panel example for that Phidget.


The locate Phidget button is found in the device information box


In the Addressing Information window, the section above the line displays information you will need to connect to your Phidget from any application. In particular, note the Channel Class field as this will be the API you will need to use with your Phidget, and the type of example you should use to get started with it. The section below the line provides information about the network the Phidget is connected on if it is attached remotely. Keep track of these parameters moving forward, as you will need them once you start running our examples or your own code.


All the information you need to address your Phidget


Using Your Own Program


You are now ready to start writing your own code for the device. The best way to do that is to start from our examples:


This Phidget is compatible with the VoltageOutput Examples.


Once you have your example, you will need to follow the instructions on the page for your programming language to get it running. To find these instructions, select your programming language from the Programming Languages page.


Technical Details


Connections

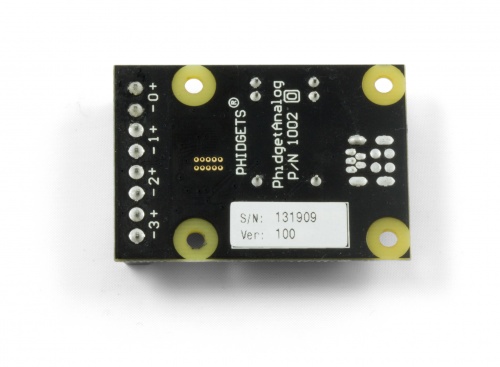

The terminal blocks on this board are labelled on the underside to save space:


1002 0 Under.jpg


Isolation


The 1002 is not isolated. All four channels use the same ground.


Current


The 1002 will limit the available current per channel at ±20mA.


  • For reliable results, don’t approach this limit, as it will vary from channel to channel.
  • For maximum accuracy, limit the current to 5mA.
  • If more than ±20mA of current is drawn, the device goes into a constant current supply mode. When this happens, the current will be held constant at it’s maximum value, and the output voltage will depend on the value of the load that the device is trying to drive.
  • If your application requires a larger current source / sink, the 1002 can be used as an input to a larger external amplifier circuit.
  • All the power is supplied by the USB bus.


Further Reading


For more information on analog outputs, see the Analog Output Primer.
