The 1121 provides an interface to non-Phidgets resistance sensors such as: Force-Sensing Resistors (FSR), light sensors, thermistors (heat sensors), and bend sensors.

The Voltage Divider eliminates the need to connect a resistor to an analog input by putting a high precision potentiometer on the board to allow the adjustment of the 'fixed' resistor.

The interface to the variable resistance sensor is a convenient terminal block.


Comes packaged with

Functional





Product Specifications

Sensor Properties
Sensor Type Resistance
Controlled By VoltageRatio Input
Sensor Output Type Ratiometric
Resistance Min 1 kΩ
Resistance Max 21 kΩ
Optimal Measurement Resistance Min (@ 1kΩ) 100 Ω
Optimal Measurement Resistance Max (@ 1kΩ) 10 kΩ
Optimal Measurement Resistance Min (@ 21kΩ) 2 kΩ
Optimal Measurement Resistance Max (@ 21kΩ) 200 kΩ
Electrical Properties
Current Consumption Max 5 mA
Supply Voltage Min 3 V DC
Supply Voltage Max 5.3 V DC
Physical Properties
Recommended Wire Size 12 - 24 AWG
Operating Temperature Min -40 °C
Operating Temperature Max 105 °C




Documents






Getting Started


Welcome to the 1121 user guide! In order to get started, make sure you have the following hardware on hand:

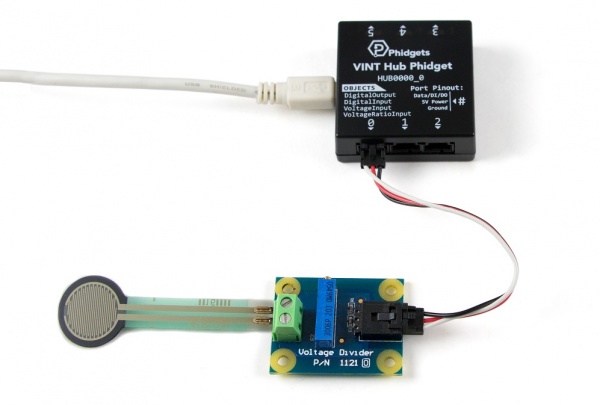

Next, you will need to connect the pieces:


1121 0 Connecting The Hardware.jpg


  1. Connect the 1121 to the HUB0000 with the Phidget cable.
  2. Connect a variable resistance sensor to the terminal block on the 1121. Polarity doesn't matter.
  3. Connect the HUB0000 to your computer with the USB cable.



Now that you have everything together, let's start using the 1121!


Using the 1121


Phidget Control Panel


In order to demonstrate the functionality of the 1121, we will connect it to the HUB0000, and then run an example using the Phidget Control Panel on a Windows machine.



The Phidget Control Panel is available for use on both macOS and Windows machines. If you would like to follow along, first take a look at the getting started guide for your operating system:




Linux users can follow the getting started with Linux guide and continue reading here for more information about the 1121.


First Look


After plugging in the 1121 into the HUB0000, and the HUB0000 into your computer, open the Phidget Control Panel. You will see something like this:


HUB0000 Panel.jpg



The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:


  • Serial number: allows you to differentiate between similar Phidgets.
  • Channel: allows you to differentiate between similar objects on a Phidget.
  • Version number: corresponds to the firmware version your Phidget is running. If your Phidget is listed in red, your firmware is out of date. Update the firmware by double-clicking the entry.



The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.


Voltage Ratio Input


Double-click on a Voltage Ratio Input object in order to run the example:


1018 Sensors VoltageRatioInput.png



General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:


  • Modify the change trigger and/or data interval value by dragging the sliders. For more information on these settings, see the data interval/change trigger page.
  • Select the 1121 from the Sensor Type drop-down menu. The Sensor Value will now return a value between 0 and 1.




Technical Details


Configuring the Voltage Divider


Why is adjusting the resistance important? The Voltage Input can measure a voltage between 0 and 1.0 voltage ratio (i.e. 0V to 5V if you have a 5V supply). When using variable resistance devices a voltage divider is commonly used to measure the changing resistance. The two resistors in the divider form a voltage, based on the ratio between them. This voltage is then measured by the Voltage Input. To optimize the voltage divider to meet your needs, you have to adjust the fixed resistance to match the characteristics of your chosen sensor. To adjust the resistance on the 1121, simply turn the screw on the potentiometer clockwise to decrease the resistance and counterclockwise to increase it. You'll see a change in resistance of about 900Ω to 1000Ω per revolution. First, adjust the resistance for no stimuli on your sensor and then apply the maximum possible stimuli and make sure that sensor's voltage stays within a range that gives you acceptable resolution. At the extremes (voltage ratio less than 0.005 or greater than 0.95), a very large change in stimuli (and therefore change in the resistance) produces only a small change in voltage. Keep adjusting until you get a range you are happy with.




1121 0 Schematic.jpg


Non-Phidgets Sensors


Type Website Search Term Example
Light Sensor Digikey photocell PDV-P9003-1
Force Sensor Digikey force sensor IESP-12
Force Sensor Trossen Robotics Force Sensing FSRs n/a
Thermistor Digikey Thermistor Radial Choose a thermistor with a resistance in the range 10K ohms.


Phidget Cable




The Phidget Cable is a 3-pin, 0.100 inch pitch locking connector. Pictured here is a plug with the connections labelled. The connectors are commonly available - refer to the Analog Input Primer for manufacturer part numbers.





1121_0 - Voltage Divider

  • Brands Phidgets
  • Product Code: ES000054
  • Availability: In Stock
  • 8.75€
